10K_RT_FLSH_2 - 10K Type-2 Thermistor Temperature Sensor with flush mount housing

Regular price $9.45

Shipping calculated at checkout.

Part #: 10K_RT_FLSH_2

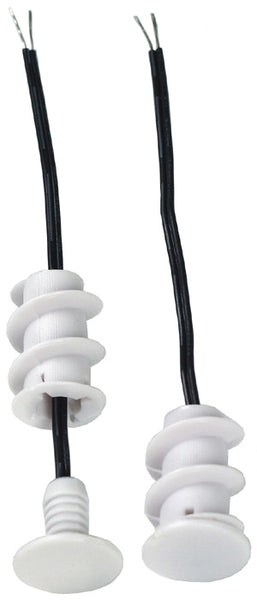

The 10K_RT_FLSH_2 temperature sensor features a plastic flush mount housing and a 10cm (4 inch) long cable.

This Flush Mount temperature sensor is designed to be screwed directly into the drywall and painted over to become almost invisible to the occupant.  This sensor is useful when cosmetic appearances are highly important.  Once installed the sensor is barely noticeable and does not change the cosmetic appearance of the room.

The sensor element used is a 10K Type-2 Thermistor and can be used with many popular brands of DDC manufacturers.

Wire temperature range: -40C to 105C
Wire Length & type: 4 inches long, non-jacketed, 24AWG stranded 2-conductor
Thermistor Type: 10K Type-2 NTC Thermistor
Thermistor Accuracy: +/- 0.2C
Sensor Operating Range -40C to 80C
Housing Material:  White Plastic
Housing Dimensions: 1" long by 3/4" diameter.

Click here for the Data Sheet
Click here for the Thermistor R/T Chart
